技术数据-UL/CUL
| 等级 Use Group | B | C | D |
| 额定电压 Rate Voltage [V] | 300 | 300 | 300 |
| 额定电流 Rated Current [A] | 15 | 15 | 10 |
| 接线范围 Wire Range [AWG] | - | ||
| 耐电压 Dielectric Voltage-Withstand | 1.6KV | ||
技术参数-IEC
| 过电压类别 Overvoltage Category | III | III | II |
| 污染等级 Contamination Class | 3 | 2 | 2 |
| 额定电压 Rated Voltage [V] | 400 | 630 | 1000 |
| 额定电流 Rated Current [A] | 20 | 20 | 20 |
| 额定冲击电压 Impulse withstand voltage [KV] | 6 | 6 | 6 |
| 导线截面积[硬/柔] Conductor cross section [mm²] | - | ||
材料 Material
| 绝缘材料 Insulation Material | PA66 |
| 阻燃等级 Flame relardant rating | UL94V-0 |
| 导体材料 Conductor Material | Copper alloy |
| 导体表面镀层 Plating of conductor surface | Sn plated |
一般参数 Other Date
| 间距/极数 Pitch/Poles [mm]/[P] | 12.0/1-12 |
| 焊接方式 Soldering method | Wave soldering |
| 引针尺寸 Pin dimensions [mm] | 0.8*2.8 |
| 工作温度 Operating temperature [℃] | -40～+105 |
| PCB板孔径 PCB Hole Diameter [mm] | 3.0*1.0 |

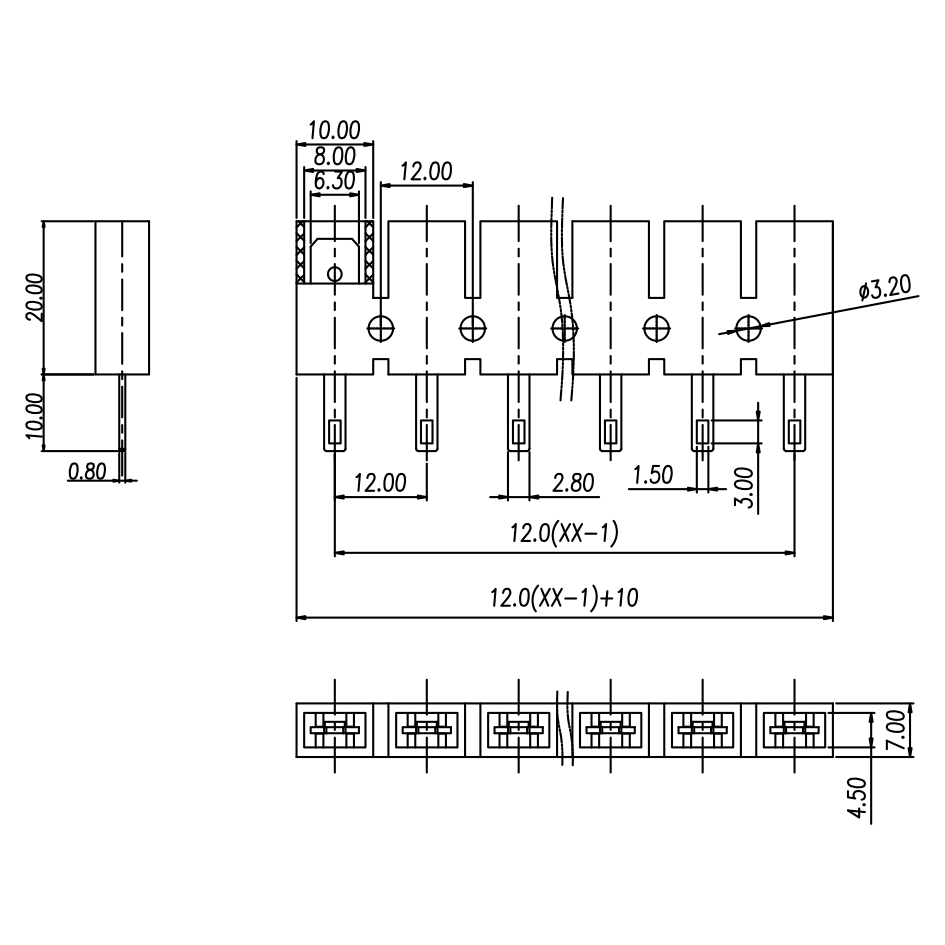

尺寸图
尺寸图

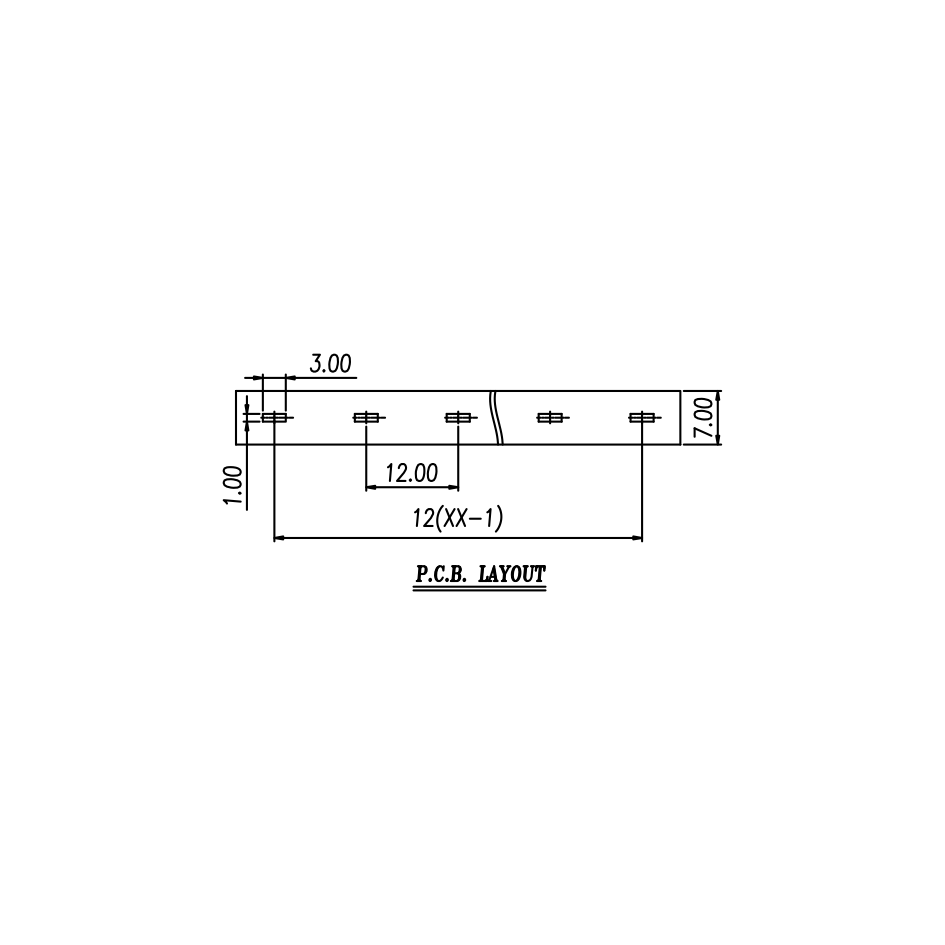

PCB开孔图
3D模型
MY120V-XXP-1Y-00A.pdf
